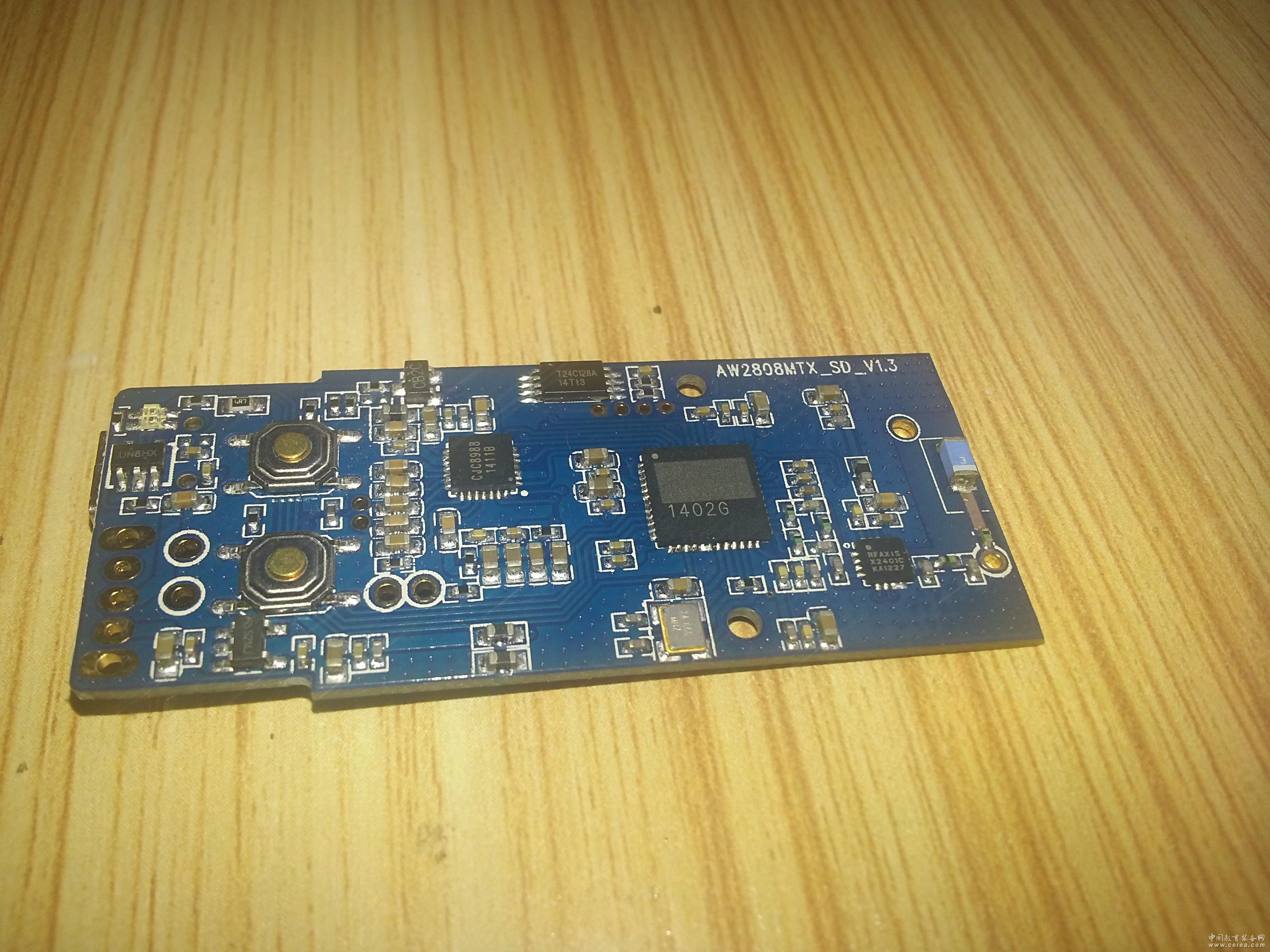

產品型號：AW2808-DJ
產品代碼：AW2808
產品價格：1
產品編碼：DJ
計量單位：pcs
折 扣 率： 0
最后更新：2014-11-25
關 注 度：4097
生產企業：天惠科技
|
|
|
 與企業聯系時請告知該信息來自教育裝備網！ |
|
|
產品詳細介紹● Single Chip with SOC
● Power Supply 2V-5V
● 3Mbps 2.4GHz RF Transceiver embedded
● 5V LDO embedded
● 8-Bit MCU Embedded
● Current Consumption
√ Transmitter 35mA
√ Receiver 30mA
● RF Characteristics
√ 2.4G ISM Band
√ RF Power:4dBm
√ Sensitivity:-81dBm with 1% P.E.R
√ Non-Overlay Channel Number:26
√ Automatic Adaptive frequency Channel Selection
√ Operation Range
150M Outdoor line-of-Sight
25M Indoor line-of-Sight
● Audio Characteristics
√ Non Compression 48KHz-16Bit
√ SNR:95dB@20Hz-20KHz
√ THD+N:-95dB@20Hz-20KHz
√ Frequency Response:20Hz-23KHz
● Voice 8KHz-16Bit without compression
● Master I2S Interface supporting 48KHz sampling rate
● Transmitter Slave interface supporting 192KHz/96KHz/48KHz/44.1KHz and 32KHz sampling rate
● Built-in SRC(Sampling Rate Converter)
● Programmable latency – minimum 12.5ms
● Unlimited Broadcasting Receivers
● Bi-directional User Control Data
● Supporting 16K8/8K8 I2C Serial EEPROM
● Programmable GPIO
● 24MHz±30ppm Crystal
● Package QFN48, 7x7mm
● Application
√ Wireless Speaker
√ Headset/Headphone
√ iPad/iPhone/iPod Docking |
|
