產品型號：CMW500
產品代碼：
產品價格：5650
計量單位：臺
折 扣 率： 0
最后更新：2016-08-02
關 注 度：7101
生產企業：深圳市美佳特貿易有限公司
|
|
|
 與企業聯系時請告知該信息來自教育裝備網！ |
|
|

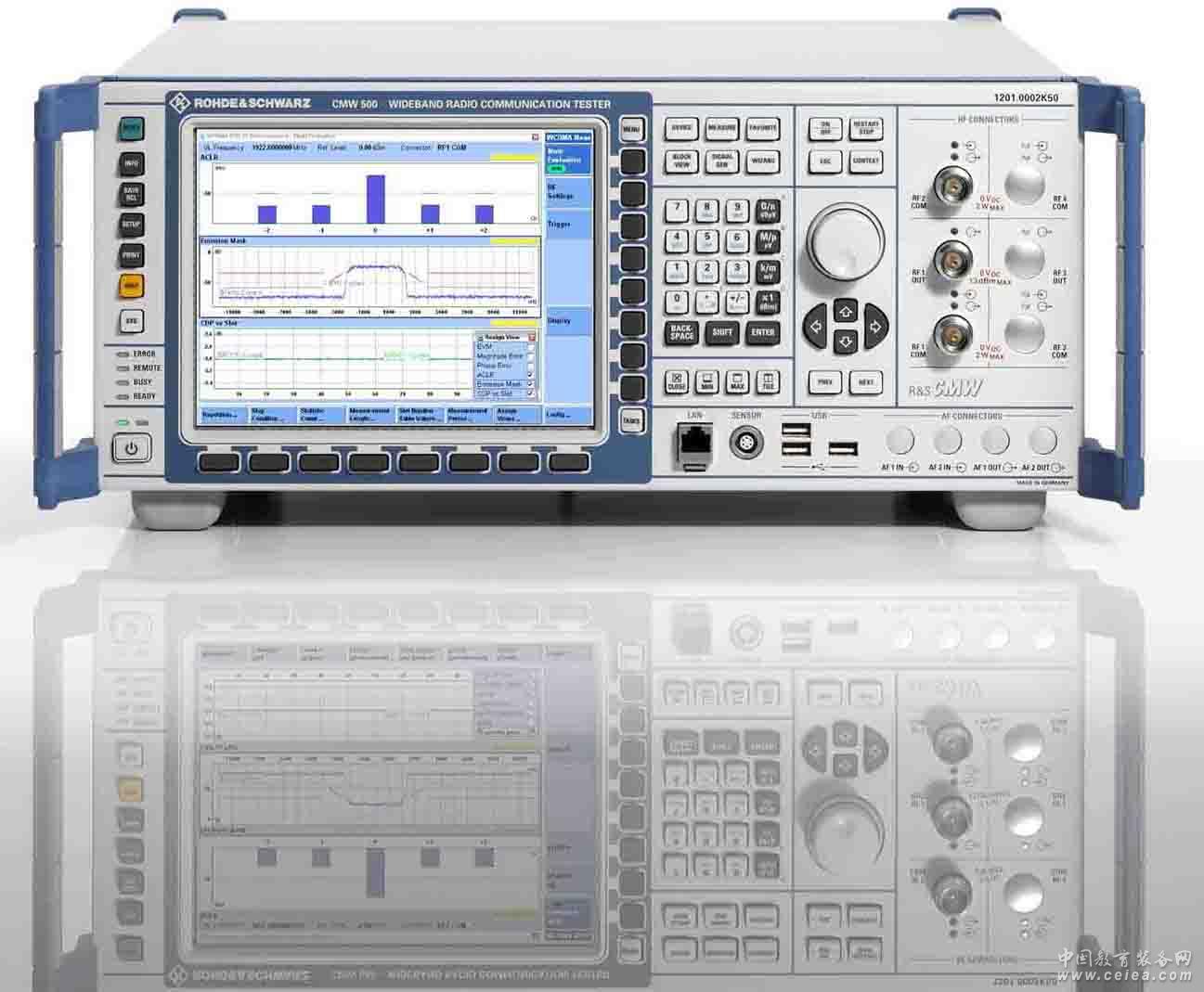

產品詳細介紹 R&S CMW500 無線通信綜合測試 測試標準 支持GSM、GPRS、EDGE、EDGE Evolution、Mobile WiMAX?、LTE FDD/TDD、TD-SCDMA、WCDMA/HSDPA、HSPA+、CDMA2000、1xEV-DO、GPS、Bluetooth、WLAN a/b/g/n、DVB-T、T-DMB、CMMB、FM stereo、Media FLO? 主要特性與技術指標1）基本模塊：通用RF 功率計和帶有List 模式的CW 發生器，可以完成無線設備的快速校準2）矢量信號分析儀（VSA）用來進行發射機驗證3）矢量信號發生器（VSG）用來進行擴展的接收機測試：ARB 模式可以縮短配置時間或在線模式可以處理高數據容量的復雜信號4）通過直接連接R&S?NRP-Zxx 功率探頭可啟動參考RF 功率測量5）使用集成RF接口可方便地連接到具有復雜RF架構的無線設備6）當前先進的圖形化用戶界面（GUI）7）通過LAN/GPIB 接口進行SCPI 遠程控制8）支持LXI Class C B100A CMW H100A Baseband Measurement UnitB110A CMW H110A ARB+Realtime Baseband Generator ModuleB200A CMW H200A Signaling Unit Universal(SUU)B230A CMW H230A 1xEV-DO Signalling Extension Module for H200AB270A CMW H270A WiMAX Signaling Extension Module for H200AB300A CMW H300A Signaling Unit Wideband (SUW)B450A Data application unitB510A CMW H510A, four digital IQ interfaces (inputs/outputs/monitor)B520A Digital I/Q 5 to 8 H520AB570A CMW H570A RF converter module (TRX)B570B CMW H570B RF converter module (TRX)B590A CMW H590A RF Frontend moduleB612A CMW H612A IEEE Bus Interface Module (single connector)B612B CMW H612B IEEE Bus Interface Module (dual connector)B620A CMW H620A Digital Video Interface (DVI) Module (only required for units with display/keB660A CMW H660A Option CarrierB661A CMW H661A Ethernet Switch BoardB690A CMW H690A OCXO ModuleB690B CMW H690B OCXO Module (highly stable)C3 3 years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s).C5 Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s).DCV-2 Documentation of calibration valuesKA700 Permanent CMW license: Application Enabler, extension Convergence Sublayer IPv4, WiMAX(IEEE802.16e)KB036 Permanent CMW license : Extended Frequency Range 3.3 GHz to 6 GHzKC420 Permanent CMW License: WCDMA R7 Test Cases 3GPP 34.123 Ciphering GCF WI-101KC421 Permanent CMW License: WCDMA R7 Test Cases 3GPP 34.123 CPC Tests GCF WI-070KC422 Permanent CMW license: WCDMA R7 test cases 3GPP 34.123 64QAM testsKC423 Permanent CMW license: WCDMA R7 test cases 3GPP 34.123 L2 enhancements testsKF502 Permanent CMW License: LTE FDD MLAPI Basic ProceduresKF503 LTE FDD MLAPI EPS Bearer VerificationKF504 Intra-LTE Handover and MobilityKG200 Permanent CMW licence: Generator, GSM/GPRS/EDGE, DownlinkKG400 Permanent CMW licence: Generator, WCDMA, DownlinkKG401 Permanent CMW license: Generator, WCDMA HSPA extension of CMW-KG400, DownlinkKM010 Permanent CMW license: FTT spectrum analyzerKM011 Permanent CMW license: TX measurement "IQ Versus Slot", UplinkKM012 Permanent CMW license: TX measurement Multi Evaluation List ModeKM200 Permanent CMW license: TX Measurement, GSM/GPRS/EDGE, UplinkKM400 Permanent CMW license: TX Measurement, WCDMA, uplinkKM401 Permanent CMW license: TX measurement, WCDMA HSPA, extension of CMW-KM400, UplinkKM403 Permanent CMW license: TX measurement, WCDMA HSPA+ extension of CMW-KM401, UplinkKM500 Permanent CMW license: TX measurement LTE FDD, UplinkKM610 Permanent CMW license: TX measurement, BluetoothKM650 Permanent CMW license: TX Measurement WLAN (IEEE 802.11a/b/g)KM700 Permanent CMW license: TX Measurements, Mobile WiMAX (IEEE 802.16e)KM701 Permanent CMW license: TX measurement, extension for R&D applications, WiMAX(IEEE802.16e), Wave 1KM750 Permanent CMW license: TX Measurement, TD-SCDMA, uplinkKM800 Permanent CMW license: TX Measurement, CMDA2000? 1xRTT, Reverse LinkKM880 Permanent CMW license: TX Measurement, 1xEV-DO, Reverse LinkKP080 Perma |
|
